CAN-IB100/PCIe PC/CAN interface board
CAN-IB100/PCIe PC/CAN interface board
Precio:
370.00€
- : En stock
- Marca: HMS Industrial Networks
- Model: 1.01.0231.12001

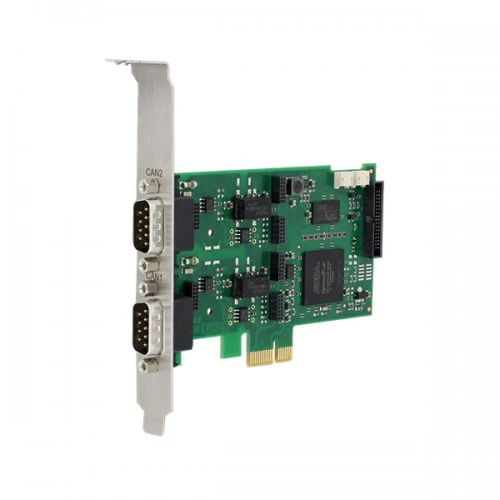

CAN-IB100/PCIe PC/CAN interface board
With the CAN-IB100/PCIe HMS offers an interface board based on a modern and highly modular concept. The interface is available with a standard or a low-profile slot bracket.
Standart Slot Bracket Version
| CAN ports | Galv. iso. | Model numbers | Optional expansions | Additional information |
|---|---|---|---|---|
| 1 | - | 1.01.0231.11000 | ||
| 1 | X | 1.01.0231.12001 | 1 x 1.01.0241.20001 Low Speed CAN Fieldbus Expansion with galv. iso. |
|
| 2 | X | 1.01.0231.22001 | 1-2 x 1.01.0241.20001 Low Speed CAN Fieldbus Expansion with galv. iso. |
|
| 4 | X | 1.01.0231.22001 + 1.01.0242.22000 Multi CAN Expansion |
Two CAN ports on each SUB-D9 plug | |
| 4 | X | 1.01.0231.22001 + 1.01.0240.22103 CAN Expansion Board |
1-4 x 1.01.0241.20001 Low Speed CAN Fieldbus Expansion with galv. iso. |
Two slot bracket ports required |
Low Profile Slot Bracket Version
| CAN ports | Galv. iso. | Order numbers | Optional expansions | Additional information |
|---|---|---|---|---|
| 1 | X | 1.01.0232.12001 | 1 x 1.01.0241.20001 Low Speed CAN Fieldbus Expansion with galv. iso. |
